As I was thumbing through NationalDayCalendar.com's birthdays and events, I came across Squire Whipple, born September 16, 1804, the "Engineer who invented the iron truss bridge."

I thought, wait a minute, the "truss" design was being used long before 1804, right?

So I meandered a little and found I was correct; however, even though I had never heard of Squire Whipple before now, his work produces a modern engineering product I now depend on regularly when I'm designing homes.

More on that, but first a brief history of trusses.

In Book III of The Four Books of Architecture, Andrea Palladio (1508-1580) includes four timber bridge designs, which employ triangulated and lattice-like timber framing.

These were not merely decorative sketches. The concepts use a recognizable truss logic: straight timber members organized so that loads can travel through a stable triangular or cross-braced framework to the supports.

Palladio was deeply familiar with timber roof framing, and he used truss-like assemblies in buildings as part of the practical construction culture of sixteenth-century Veneto.

In Italy, a timber roof truss type is still often called a palladiana or Palladian truss because of its association with Palladio’s work.

However, even Palladio may not be able to claim to be the "inventor" of trusses.

A triangular braced framework was not a wholly new Renaissance invention. Timber roof trusses and other braced carpentry systems predated Palladio.

The difference here is that the Renaissance carpenters worked with timbers; steel had not yet been invented.

In Whipple's case, patents had officially been obtained. I found two of them. One for the Bowstring Iron-Truss Bridge, and one for the Lift drawbridge.

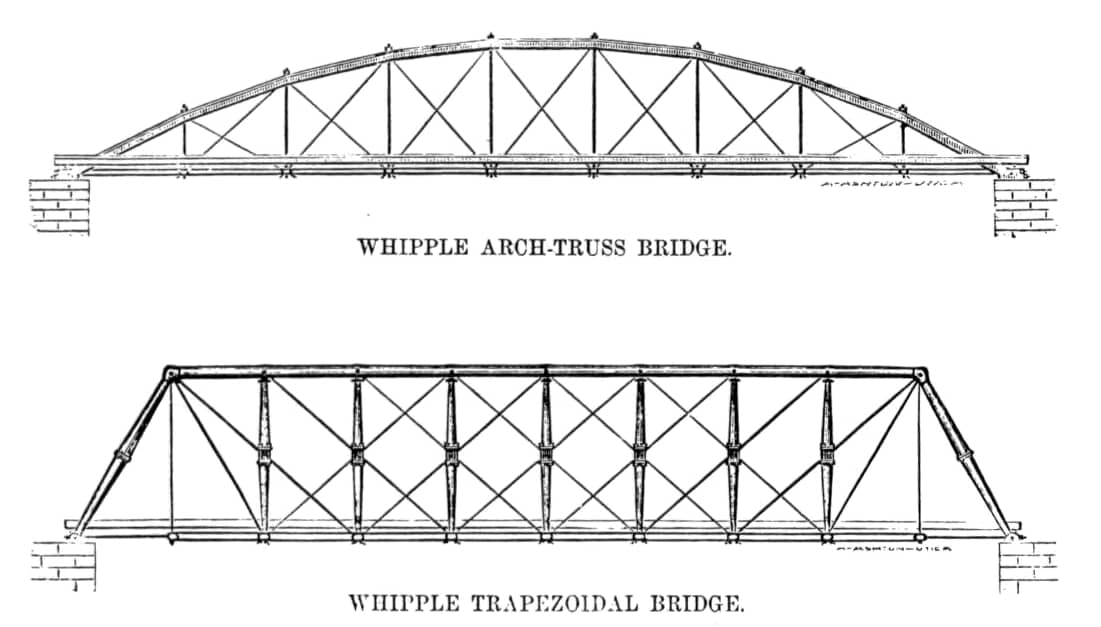

Although I couldn't find a patent, the trapezoidal bridge design became widely referred to as the Whipple Truss.

In fact, I found a whole slew of truss bridge designs, many of which bear the names of their designers. Except Palladio. His name seems to have been dropped from the modern list.

But I digress.

Here's where this matters in today's home design.

Whipple did not merely refine an existing bridge type; he helped make the design of iron trusses scientifically defensible, buildable, and repeatable.

Whipple's patented iron bowstring-truss bridge's configuration used a curved upper chord, with a trussed web and deck below. His important material strategy was to use:

• cast iron where members were chiefly in compression
• wrought iron where members were chiefly in tension

That matched each material to its strengths and helped control cost, since wrought iron was comparatively expensive.

Whipple’s deeper contribution was his 1847 publication, A Work on Bridge Building. It presented a theoretical method for determining stresses in truss members—described by the American Society of Civil Engineers as the first scientifically designed truss bridge approach in the United States.

In practical terms, this meant a designer could ask, member by member:

Instead of merely making every part heavier “to be safe,” the engineer could proportion members to calculated loads, including the moving loads imposed by railroad traffic. That improved safety, economy, and confidence in using iron for longer spans.

Whipple’s work is associated with an early form of what is now taught as the method of joints for truss analysis.

Modern wood roof and floor trusses are typically factory-built, engineered assemblies of lumber and metal connector plates. They distribute roof, wind, ceiling, equipment, and—in applicable climates—snow loads through triangulated webs to exterior or designated bearing walls.

The modern residential truss is not simply a geometric pattern. It is a proprietary or project-specific engineered component system that must be coordinated with the building’s load path.

For a home in a high-wind region, that means the complete chain matters:

That's the stuff I work with regularly, and although a truss engineering shop drawing looks highly complicated, it's simple to learn.

The truss drawings establish bearing locations, reactions, web layouts, plate requirements, spacing, and often temporary and permanent bracing information.

The contractor must install them without unauthorized modification. Cutting a chord or web, relocating a bearing, omitting specified bracing, or adding concentrated loads—such as HVAC equipment—without the truss designer’s review can invalidate the component’s intended performance.

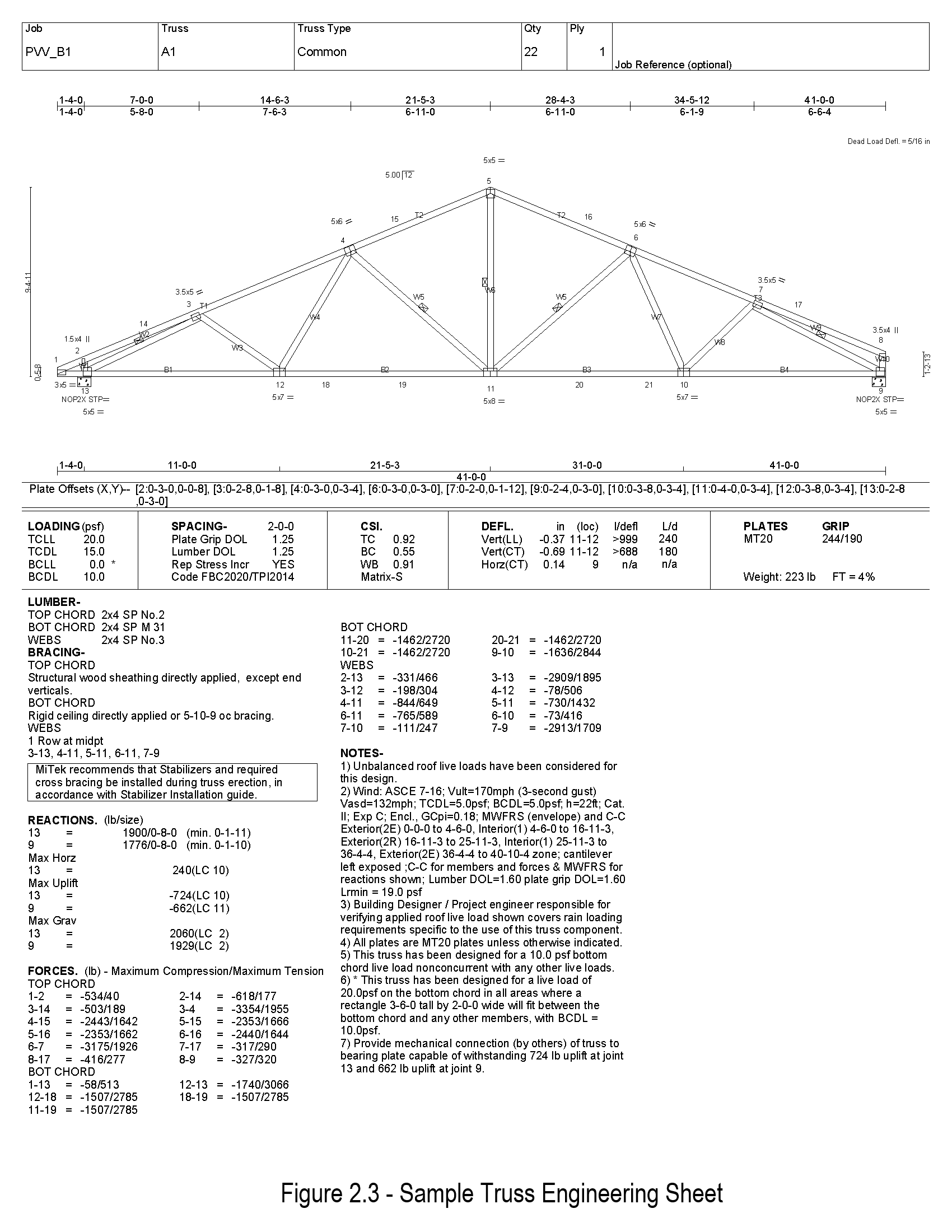

Along with the truss drawings, you should be receiving individual "cut sheets" showing the components and engineering calculations for each individual truss in the package.

Most of the information on the page is directed at the CNC machines and the team assembling the trusses in the shop.

However, there is critical information that you, as a home designer, must have to design the structure that's intended to support the trusses, and the connectors that hold them in place.

Our partners at the Structural Component Manufacturers Association have made it easy for us to navigate the complexities of engineering, uncovering the key insights that lead to more informed and safer home design.

Mastering how to read structural component documentation is essential for bridging the gap between architectural vision, engineering reality, and field execution.

The SBCA’s video series How to Read Truss Design Drawings provides residential design professionals with a comprehensive walkthrough of manufactured truss plans, giving you the technical vocabulary and structural insight needed to elevate your practice.

Fluency in truss drawings translates directly into clearer communication across the entire project team. Knowing how to interpret detailed notes, hanger connections, and bearing details allows you to converse more effectively with structural engineers, component manufacturers, framing contractors, and building code officials.

This professional fluency builds trust, streamlines the plan review process, and ensures that your structural intent is accurately executed on the job site.

Palladio helped document timber truss forms in architectural literature, while Whipple helped establish the science of analyzing truss forces.

Today, engineered wood trusses carry that legacy into modern residential construction — empowering you to design homes that go up faster, span greater distances, and perform with confidence every time.
